Champion Power Equipment · Updated August 2026

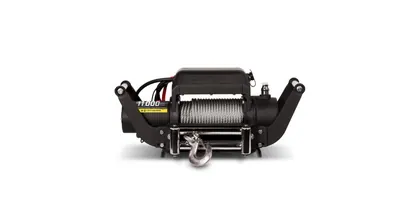

Champion 11,000 lb Winch Kit with Speed Mount: full specs
Champion 11,000 lb Winch Kit with Speed Mount. Every price and spec below is linked to its source and dated — no guesses.
Source: championpowerequipment.com verified verify in ledger
The Champion 11,000 lb Winch Kit with Speed Mount has no published US price yet. It earns a Bronze Deskmark — 22/100 pay-blind standing, #6 of 8 in class.
Verified Aug 9, 2026 · figures linked to their source in the table below
Cheapest off road winches: WARN Roller Fairlead, 4-Way (Part 5742) — $193.74
Is the Champion 11,000 lb Winch Kit with Speed Mount a good buy?
On the spec sheet, its weight of 114.6 lb is the highest of the 8, its pulling capacity of 11000 lb is above the median of the 11, and its gear ratio of 216:1 is below the median of the 8.
Specifications
| Price (US) | Not published Not listed on Champion's own product page; no consistent current third-party retail figure could be verified, so left null rather than guessed |
|---|---|
| Brand | Champion Power Equipment |
| Released | — |
| Pulling capacity (lb) | 11000 |
| Motor power hp | 3.6 |
| Line type | Galvanized steel aircraft cable |
| Line length diameter | 85 ft x 3/8 in |
| Gear ratio | 216:1 |
| IP rating | — |
| Clutch type | Free spooling |
| Remote type | Handheld quick-connect remote, 12 ft cable |
| Weight (lb) | 114.6 |
| Fairlead type | — |
| Material | — |
| Compatible winch capacity | — |
Source: championpowerequipment.com (verified 2026-08-09). CORRECTED FROM SEED: Champion Power Equipment's catalog has no 11,500 lb winch. Their nearest and only comparable product is the 11,000 lb Winch Kit with Speed Mount (model 100139), used as the corrected entry. Champion's own product page confirms 11,000 lb rated line pull, a 3.6 hp 12V DC series-wound motor, 3/8 in x 85 ft galvanized steel aircraft cable, 216:1 three-stage planetary gear ratio, free-spooling clutch, a 12 ft handheld quick-connect remote, 3 ft/min full-load line speed, 15.7 ft/min no-load line speed, 420A max current draw, intermittent duty cycle, 114.6 lb weight, and a 2-year limited warranty with lifetime technical support. No IP ingress rating or price is published on the manufacturer page.
Frequently asked questions
How much does the Champion 11,000 lb Winch Kit with Speed Mount cost?
The Champion 11,000 lb Winch Kit with Speed Mount has no published US price as of 2026-08-09.
What are the Champion 11,000 lb Winch Kit with Speed Mount's key specs?
Champion 11,000 lb Winch Kit with Speed Mount (Champion Power Equipment): pulling capacity lb 11000, motor power hp 3.6, line type Galvanized steel aircraft cable, line length diameter 85 ft x 3/8 in, gear ratio 216:1. Full sourced spec sheet verified 2026-08-09.
