WARN · Updated August 2026

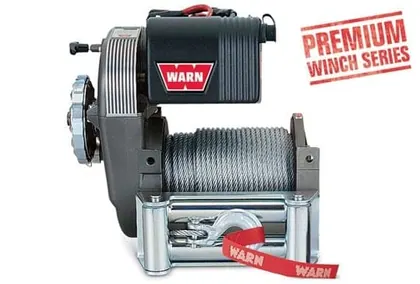

WARN M8274-50 Winch: full specs
WARN M8274-50 Winch. Every price and spec below is linked to its source and dated — no guesses.
Source: winchesinc.com verified STALE · 2026-08-09 verify in ledger
The WARN M8274-50 Winch has no US price of record yet. It earns a Bronze Deskmark — 2/100 pay-blind standing, #8 of 8 in class.
Verified Aug 9, 2026 · figures linked to their source in the table below
Cheapest off road winches: WARN Roller Fairlead, 4-Way (Part 5742) — $193.74
Is the WARN M8274-50 Winch a good buy?
On the spec sheet, its pulling capacity of 8000 lb is the lowest of the 11, and its weight of 110 lb is above the median of the 8.
Specifications
| Price (US) | Not published No verified manufacturer-published MSRP found specific to the -50 legacy unit (part 38631); a reseller listing shows $3,212.99 discounted to $963.90, but that figure is identical to WARN's current, structurally different M8274 (part 106170, 10,000 lb spur-gear model, $3,212.99 MSRP on warn.com) and appears to be reused/conflated rather than -50-specific, so no price is listed rather than a guess |
|---|---|
| Brand | WARN |
| Released | — |
| Pulling capacity (lb) | 8000 |
| Motor power (hp) | 4.6 hp @ 12V / 2.5 hp @ 24V, series wound |
| Line type | Steel cable |
| Line length diameter | 150 ft x 5/16 in |
| Gear ratio | — |
| IP rating | — |
| Clutch type | Sliding motor pinion gear, freespooling |
| Remote type | Remote switch, 12 ft lead |
| Weight (lb) | 110 |
| Fairlead type | — |
| Material | — |
| Compatible winch capacity | — |
Source: winchesinc.com (read 2026-08-09) STALE · 2026-08-09 .
How we checked
WARN's classic M8274-50 (part 38631) is a distinct, older worm/spur-gear military-pattern winch still sold alongside WARN's modern M8274 (part 106170); the two are easily confused since both current WARN pages reference "M8274" family naming. Winches Inc's authorized-dealer spec sheet reproduces WARN's own published data for the -50: 8,000 lb single-line rated capacity, spur gear train, 150 ft of 5/16 in steel cable, 4.6 hp (12V) / 2.5 hp (24V) series-wound motor, sliding-motor-pinion-gear freespooling clutch, 12 ft remote switch lead, 79.3 ft/min no-load retrieval speed, automatic disc brake, and 110 lb weight. No numeric gear ratio or IP ingress rating is published for this legacy design, so both are left blank rather than estimated. WARN's own M8274-50 manual (ManualsLib-hosted) was consulted but its OCR text was not legible enough to independently corroborate gear ratio.
Frequently asked questions
How much does the WARN M8274-50 Winch cost?
The WARN M8274-50 Winch has no US price of record as of 2026-08-09.
What are the WARN M8274-50 Winch's key specs?
WARN M8274-50 Winch (WARN): Pulling capacity (lb) 8000, Motor power (hp) 4.6 hp @ 12V / 2.5 hp @ 24V, series wound, Line type Steel cable, Line length diameter 150 ft x 5/16 in, Clutch type Sliding motor pinion gear, freespooling. Full sourced spec sheet verified 2026-08-09.
