Rohde & Schwarz RTB2004: full specs
The Rohde & Schwarz RTB2004 has no published US price yet. It earns a Platinum Deskmark — 79/100 pay-blind standing, #1 of 10 in class.
Verified Jul 13, 2026 · figures linked to their source in the table below
Rohde & Schwarz RTB2004. Every price and spec below is linked to its source and dated — no guesses.
Source: rohde-schwarz.com verified ✓ corroborated verify in ledger
Is the Rohde & Schwarz RTB2004 a good buy?
On the spec sheet, its analog channels of 4 is the highest of the 10, its display size of 10.1 in is the highest of the 8, and its bandwidth of 300 MHz is above the median of the 9.
Specifications
| Price (US) | Not published No US price is stated on either fetched page. The Rohde & Schwarz page publishes MSRP only via a request-for-quote form (no figure rendered), and the TestEquipmentHQ retailer page lists the RTB2004 as "£POA" (price on application, GBP, refurbished). No USD figure was available to source verbatim, so priceUsd is null. |
|---|---|
| Brand | Rohde & Schwarz |
| Released | — |
| Bandwidth (MHz) | 300 |
| Analog channels | 4 |
| Max sample rate gsps | 2.5 |
| Memory depth mpts | 20 |
| Adc resolution bits | 10 |
| Waveform update rate wfms per sec | — |
| Display size (in) | 10.1 |
| Has digital channels | Yes |
| Built in signal generator | Yes |
| Form factor | benchtop |
| Weight (kg) | — |
Source: rohde-schwarz.com (verified 2026-07-13) · corroborated by testequipmenthq.com. The Rohde & Schwarz brochure/datasheet page (manufacturer domain) confirms the RTB2000 series' core "power of ten" specs verbatim — "10-bit ADC, 10 Msample memory and 10.1" touchscreen" — and the "70 MHz to 300 MHz" bandwidth range, establishing the 300 MHz software-unlockable ceiling used here. The TestEquipmentHQ product page identifies this EXACT model as the "RTB2004 4 Channels / 70MHz / 2.5GSa/s digital scope" and states verbatim: four analog input channels, 70/100/200/300 MHz bandwidth, up to 2.5 GSa/s, 10 Msample per channel with 20 Msample interleaved (memoryDepth = 20 Mpts), 10-bit ADC, and the 10.1-inch capacitive touchscreen; it also lists factory options "B1 - MIXED SIGNAL UPGRADE" (logic/MSO channels) and "B6 - ARBITRARY WAVEFORM GENERATOR", supporting hasDigitalChannels = true and builtInSignalGenerator = true. Neither page published a US price (R&S uses a quote form; the retailer shows "£POA"), so priceUsd is null; waveform capture rate and weight were not stated on either fetched page and are left null.
Frequently asked questions
How much does the Rohde & Schwarz RTB2004 cost?
The Rohde & Schwarz RTB2004 has no published US price as of 2026-07-13.
What are the Rohde & Schwarz RTB2004's key specs?
Rohde & Schwarz RTB2004 (Rohde & Schwarz): bandwidthMhz 300, analogChannels 4, maxSampleRateGsps 2.5, memoryDepthMpts 20, adcResolutionBits 10. Full sourced spec sheet verified 2026-07-13.
Similar oscilloscopes
Nearest in price — swipe to browse. Every pick sourced and dated.
All oscilloscopes ranked → · Open data & methodology · Queryable via MCP
Compare with
Head-to-head

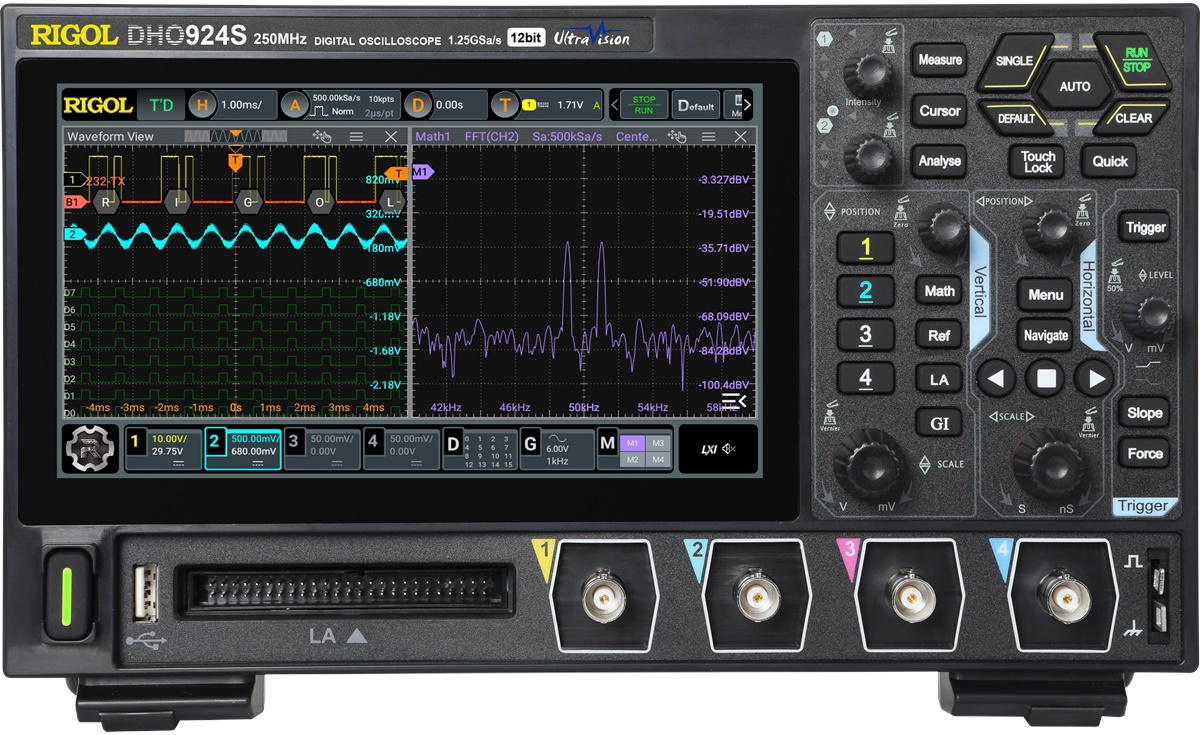

- Rohde & Schwarz RTB2004 vs Rigol DHO924S

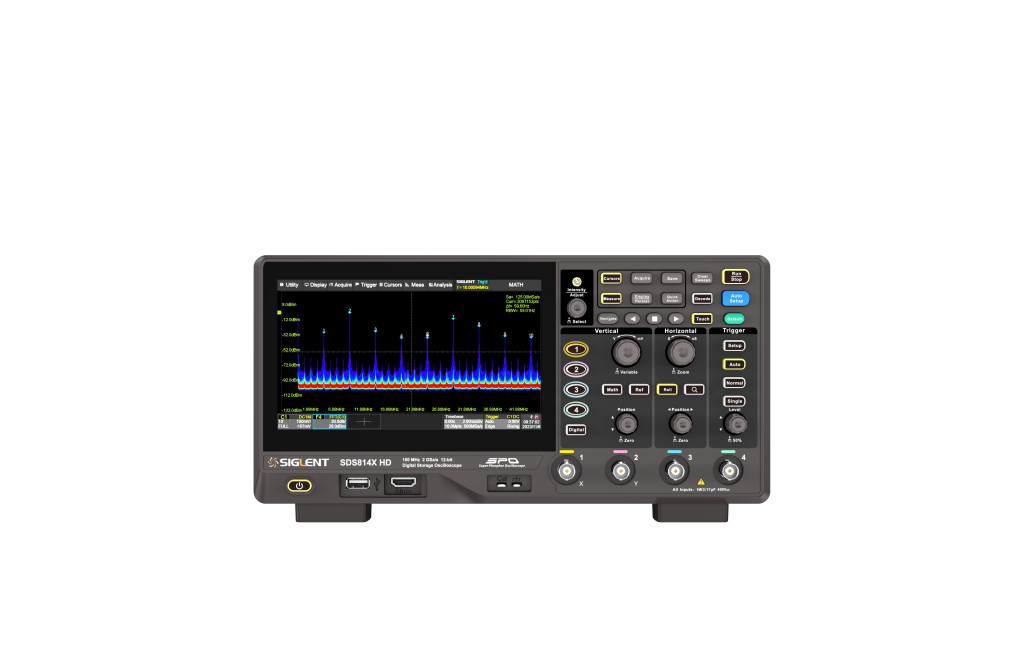

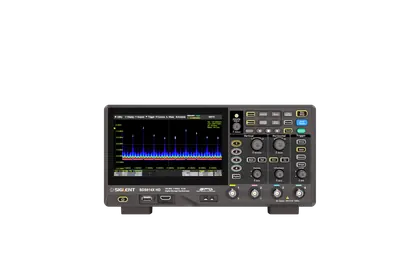

- Rohde & Schwarz RTB2004 vs Siglent SDS814X HD

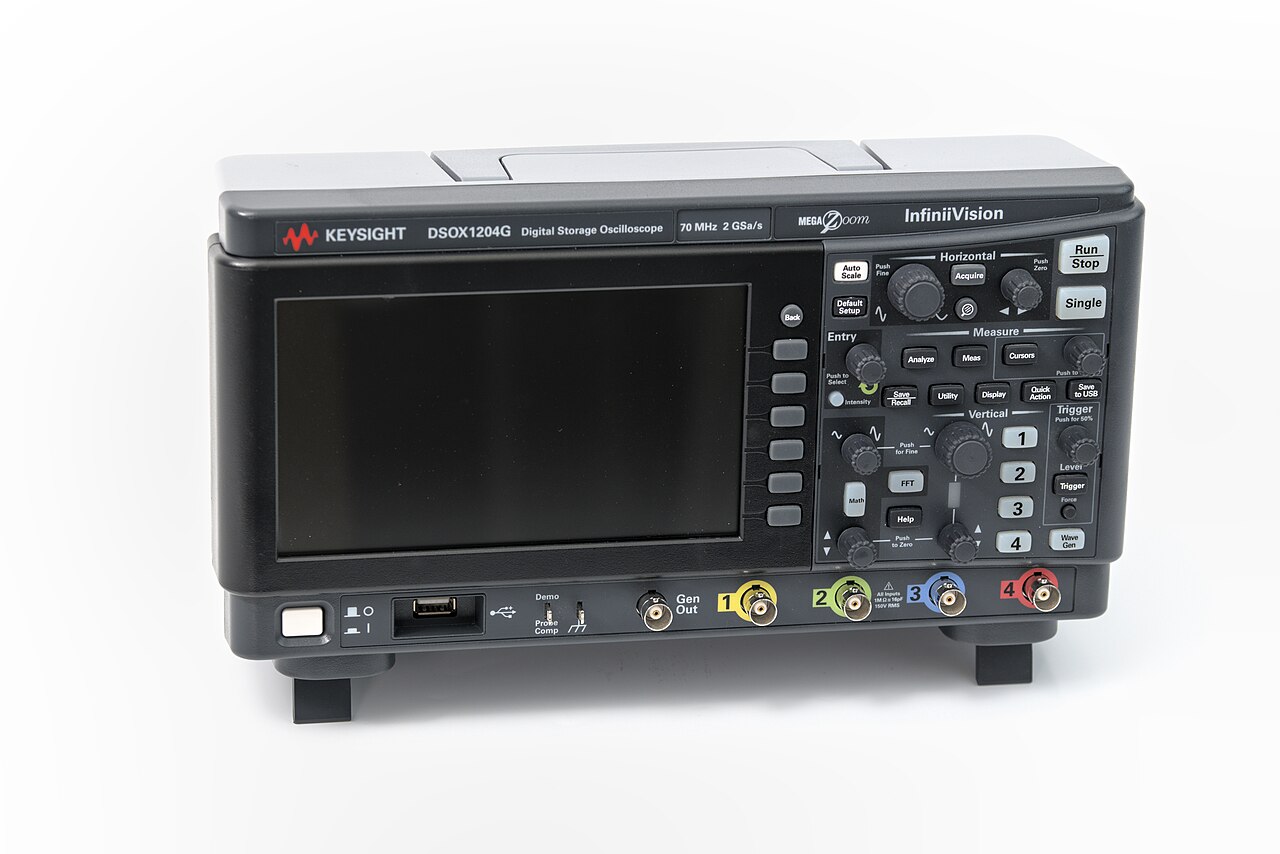

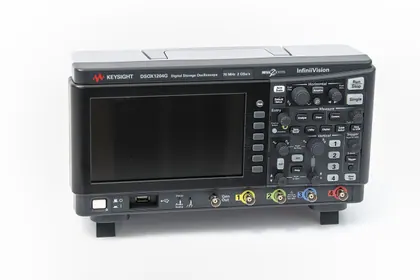

- Rohde & Schwarz RTB2004 vs Keysight InfiniiVision DSOX1204G
- Rohde & Schwarz RTB2004 vs Tektronix TBS2104B
- Rohde & Schwarz RTB2004 vs PicoScope 2208B MSO
- Rohde & Schwarz RTB2004 vs Digilent Analog Discovery 3

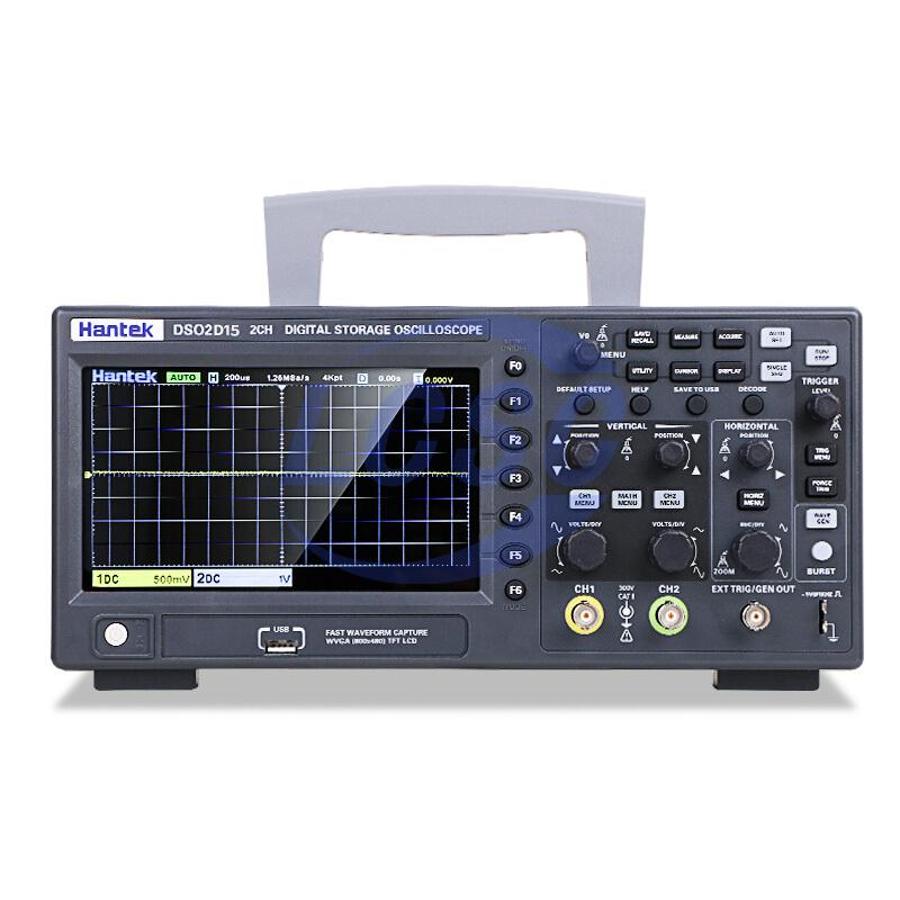

- Rohde & Schwarz RTB2004 vs Hantek DSO2D15
