Hypertherm · Updated August 2026

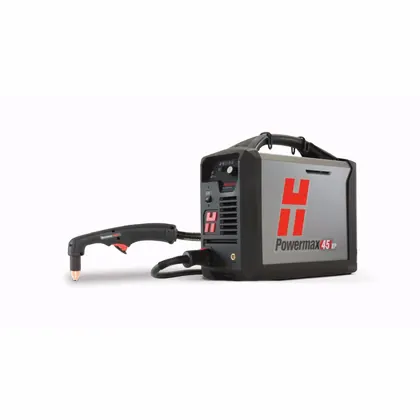

Hypertherm Powermax45 XP Plasma Cutter: full specs
Hypertherm Powermax45 XP Plasma Cutter. Every price and spec below is linked to its source and dated — no guesses.
Source: weldingsuppliesfromioc.com verified verify in ledger
The Hypertherm Powermax45 XP Plasma Cutter has no published US price yet. It earns a Silver Deskmark — 60/100 pay-blind standing, #5 of 14 in class.
Verified Aug 11, 2026 · figures linked to their source in the table below
Cheapest plasma cutters: YesWelder CUT-55DS PLUS Pilot Arc Plasma Cutter — $309
Is the Hypertherm Powermax45 XP Plasma Cutter a good buy?
On the spec sheet, its cutting amperage of 45 A is above the median of the 14, and its weight of 31 lb is above the median of the 11.
Specifications
| Price (US) | Not published Discontinued by Hypertherm in March 2024, replaced by the Powermax45 SYNC. Last documented dealer price for the 20 ft hand-torch package (SKU 088012) was $2,435.00 (weldingsuppliesfromioc.com, listed sold out at time of check). |
|---|---|
| Brand | Hypertherm |
| Released | — |
| Cutting amperage (A) | 45 |
| Rated cut thickness | 5/8 in (16mm) |
| Sever cut thickness | 1-1/8 in (29mm) |
| Duty cycle at rated amps | 50% @ 45A, 100% @ 32A |
| Input voltage | 200-240V, 1-PH, 50/60Hz |
| Pilot arc | Yes |
| Air requirement | 400 scfh (6.7 CFM) @ 90 psi, clean/dry shop air |
| Weight (lb) | 31 |
Source: weldingsuppliesfromioc.com (verified 2026-08-11). Retained from the seed list per instructions despite being discontinued. Dealer page (weldingsuppliesfromioc.com) explicitly states "This machine has been replaced by the Powermax 45 Sync (088560)" and lists it sold out at $2,435.00 for the 20 ft hand-torch package, so priceUsd is left null with the last-known figure recorded in priceNote rather than presented as a current, purchasable price. Cut thickness (5/8 in recommended, 1-1/8 in severance), duty cycle (50% @ 45A, 100% @ 32A), 200-240V 1-PH input, 400 scfh @ 90 psi air spec, and 31 lb (with torch) weight all confirmed on the same dealer page, which reproduces Hypertherm's factory spec sheet.
Frequently asked questions
How much does the Hypertherm Powermax45 XP Plasma Cutter cost?
The Hypertherm Powermax45 XP Plasma Cutter has no published US price as of 2026-08-11.
What are the Hypertherm Powermax45 XP Plasma Cutter's key specs?
Hypertherm Powermax45 XP Plasma Cutter (Hypertherm): cutting amperage a 45, rated cut thickness 5/8 in (16mm), sever cut thickness 1-1/8 in (29mm), duty cycle at rated amps 50% @ 45A, 100% @ 32A, input voltage 200-240V, 1-PH, 50/60Hz. Full sourced spec sheet verified 2026-08-11.
